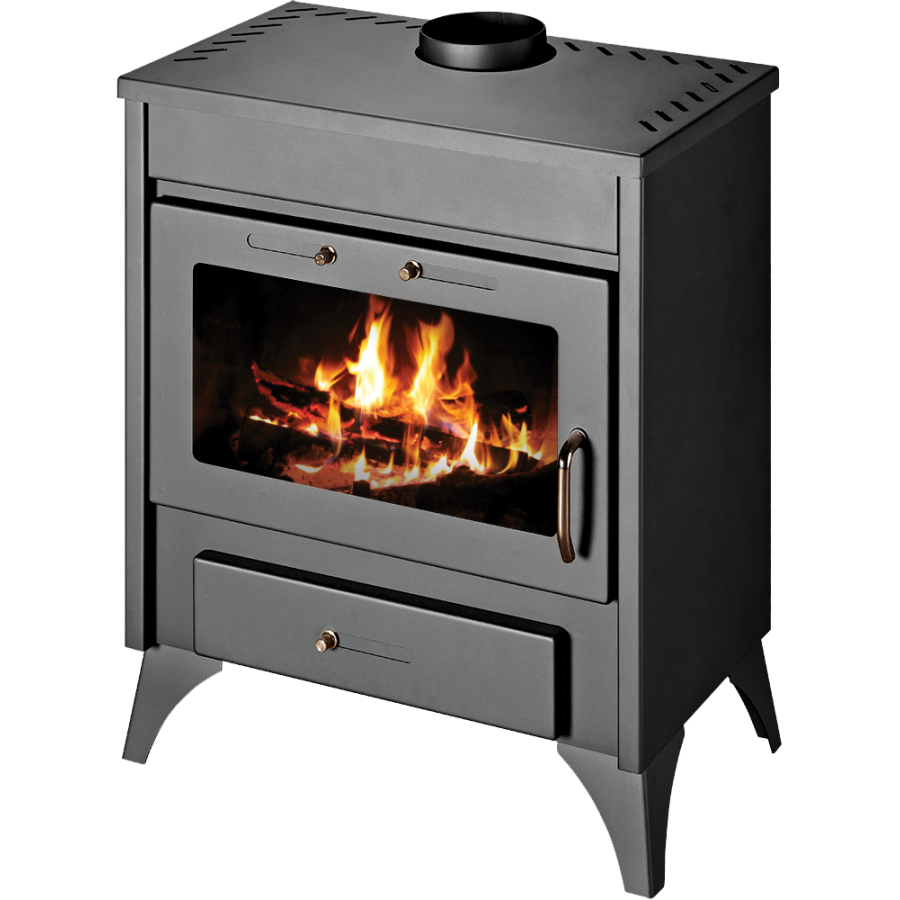

  • Victoria-05 Ray Max B* wood burning stove
1 1

Victoria-05

Victoria-05 Ray Max B* 5.5 kW Wood Burning Boiler Stove

Victoria-05 Ray Max B* 5.5 kW Wood Burning Boiler Stove

£789.00 GBP
£789.00 GBP
Sale Sold out
Taxes included. Free delivery included.

In stock

Free delivery · United Kingdom

Estimated delivery: up to 10 working days from order

Dispatched next working day · Tracking number sent after dispatch

Victoria-05 Ray Max B* is a wood-burning boiler stove with 5.50 kW of nominal output to the room. Its nominal output to water is 7.50 kW.
Room output: 5.50 kWWater output (nominal): 7.50 kWFirebox W × D × H: 566 × 290 × 325 mm
Check installation suitability and delivery details before ordering.
Questions about your free delivery? ↗
See full specificationsQuestions before ordering?
View full details

A closer look · Victoria-05

Combustion chamber

The firebox measures 566 × 290 × 325 mm (width × depth × height). The stove body measures 640 × 451 × 792 mm; use both sets of dimensions when planning its position and access. The water volume is 18.00 l. Match the room and water outputs to the heating design, and have an installer confirm the required system components.

Dimensions & specifications

Combustion chamber W × D × H566 × 290 × 325 mm
Nominal room output5.50 kW
Nominal water output7.50 kW
Efficiency at nominal output80 %
Body W × D × H640 × 451 × 792 mm
Flue diameter (outside)150 mm
Net weight118 kg
FuelDry wood
Water volume18.00 l
Maximum working pressure2 bar
More technical specifications
Testing pressure4.0 bar
Colourblack
Gross weight133 kg
Packaging W × D × H790 × 550 × 970 mm

Before you order

What is included?

Your order includes the selected stove or cooker and free delivery. The selected colour and configuration are shown above. Any additional accessories must be confirmed before ordering; do not assume that flue components, a hearth or installation are included.

Delivery & access

Delivery is free to the UK, all EU countries, Scandinavia and Switzerland. Please tell us about any access restrictions so we can coordinate the delivery and unloading arrangements.

Warranty & returns

Every stove comes with a 2-year warranty and 30-day free returns. We pay the return transport. Email freshsupply.ltd@yahoo.com to arrange a return or get warranty assistance. Your statutory rights are unaffected.
